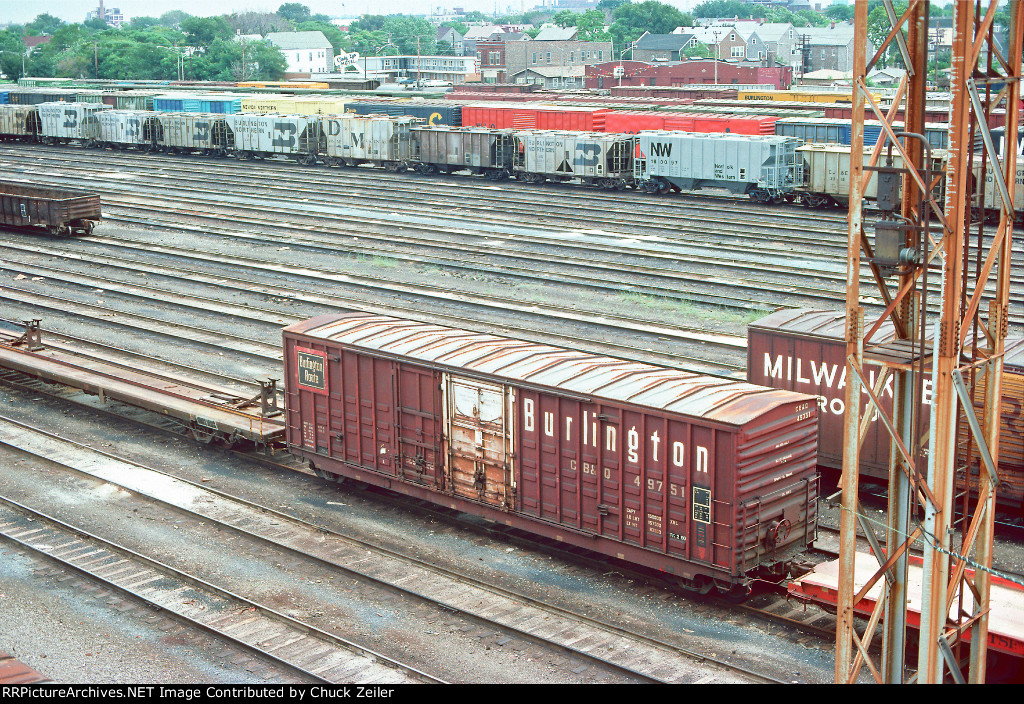

| Chicago Burlington & Quincy Railroad Class XM-4C 49751 at Cicero, Illinois on an unknown day in September 1980, Kodachrome by Chuck Zeiler. This shows the Left side of the car, the Right side had the steel herald plate removed. This car was stenciled: BLT.HV.8.66 . The following is from the book, CB&Q Color Guide to Freight and Passenger Equipment, by Michael J. Spoor: CB&Q # 49400 - 49799 were built at Havelock ( CB&Q shops in Nebraska ) during 1966 as Class XM-4C. Built to a Northern Pacific design, these were the only boxcars on the Q to feature the waffle pattern on the car side. All of the XM-4C's featured the combination 8' and 6' plug doors with grain access doors ( at the top of the 8' door ) originally introduced in 1963 on the Class XM-4's. Also like the XM-4's, the XM-4C's had an inside length of 50' 6" and a 5,080 cu. ft. capacity. While the XM-4B's of 1966 came with roofwalks and ladders, the XM-4C's never received either, even though both groups of cars were being built at the same time. And the following came from an internet search: The waffle side cars featured protrusions on the exterior which held load tie-downs on the interior. |
